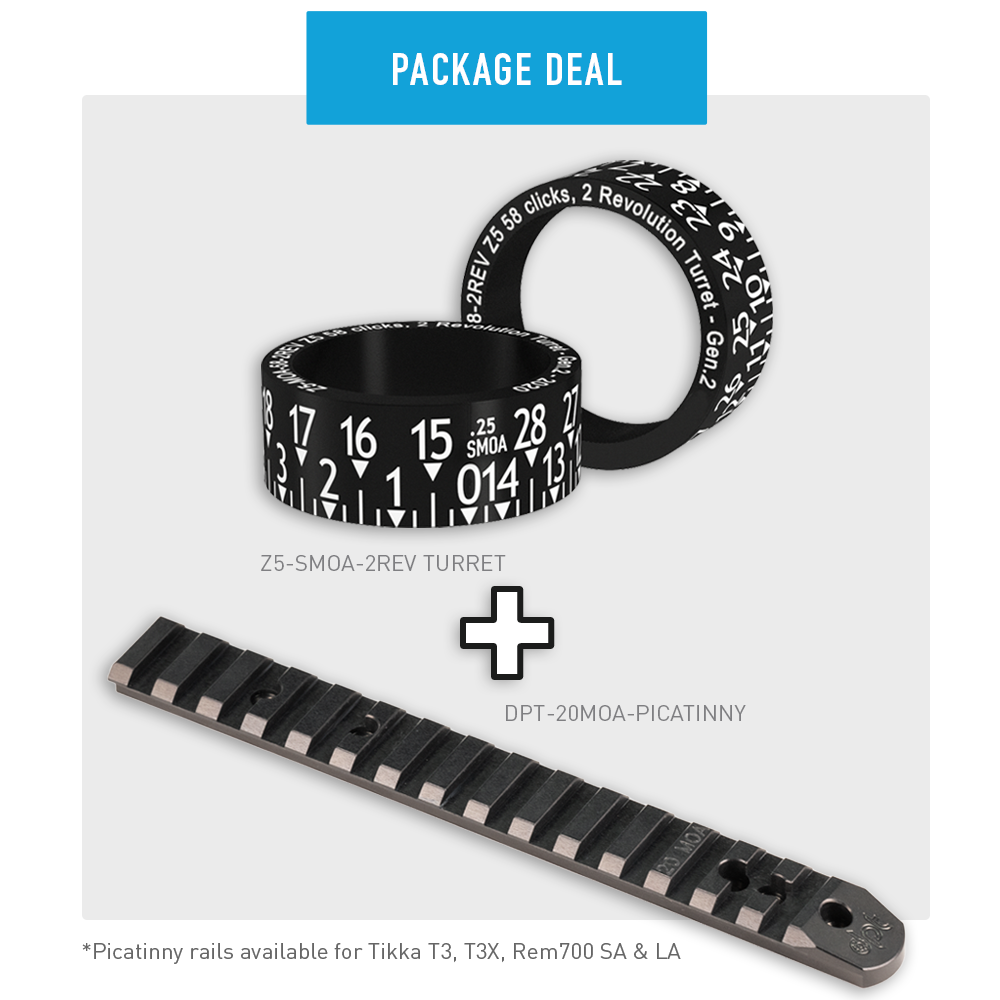

Z5-SMOA-2REV

.25 SMOA turret clicks are indicated on the turret with short lines around the base, .5 SMOA markings are indicated with longer lines, 1 SMOA markings are indicated with a downward-facing arrow and the number of SMOA above.

1 click = .25 SMOA = 1/4" @ 100yds = 7.2mm @ 100m (see NOTE below)

Each full rotation contains 58 clicks, equivalent to 14.5 SMOA.

With the factory zero stop installed, there are generally 53 clicks available, equivalent to 13.25 SMOA.

To achieve 2 revolutions of the turret the factory zero stop must be removed.  See How to Remove Factory Zero Stop.

DPT-20MOA-PICATINNY

Manufactured to fit both the Tikka T3 and T3X models, 20MOA tilt, anodised black, supplied with 5 x torx screws for fixing to T3/T3X receiver.

With this kit installed on our Tikka T3 chambered in .308, fitted with a Z5 3.5-18x44 we are getting 40SMOA of travel above the rifle zero.

MANAGING RIFLE ZERO WITHOUT A ZERO STOP

For management and confidence in your Swarovski rifle scope with the factory zero stop removed, it is recommended that after zeroing the scope you count the number of clicks below the rifle zero to fully reach the bottom of the scope elevation adjustment. Record this number and direction on the side of your magazine or inside your floor plate and you will always have a reference to know how to get back to rifle zero should you ever be unsure in the future or in the field.

If you are using a Z5 5-25x52 on a 20MOA rail your rifle zero should be within the bottom turn of the riflescopes adjustment so it is very easy to manage.

NOTE: According to the specifications on Swarovskioptik.com Z5 Riflescopes are NOT true MOA, 1.047"/100yds they are actually IPHY aka SMOA, 1"/100yds

Our testing has shown that the Z5 range of riflescopes typically dial .975"/100yds or .244"/click
